Input Y/C S-Video, 1 Vpp @ 75 ohms (Y), 0.3 Vpp @ 75 ohms (C), On a 4P connector
Output Y/C S-Video, 1 Vpp @ 75 ohms (Y), 0.3 Vpp @ 75 ohms (C), On two BNC connectors
Y/C S-Video x2, 1 Vpp @ 75 ohms (Y), 0.3 Vpp @ 75 ohms (C), On 4P connectors
Video Bandwidth 425 MHz
Video Signal-to-Noise Ratio 72.4 dB
Differential Phase 0.05°
Differential Gain 0.03%
Video Control -0.8 dB to +6 dB (Y gain),
0.9 dB to +9.5 dB (Y EQ. @ 5.8 MHz),
-0.5 dB to +4.3 dB (Chroma gain)
Coupling DC
Power Source 12 VDC, 40 amps
On a supplied AC adapter
Dimensions 4.7 x 2.95 x 0.98" (WxDxH)
12 x 7.5 x 2.5cm (WxDxH)
Weight 0.67 lbs
.3 kg

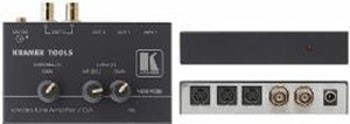

• Modelo: KRAMER 103YCB
• 5 Unidades en Stock
• Fabricado por: KRAMER
