Input One s-video(Y/C)
(Y)1 Vpp @ 75 ohms
(C) 0.3 Vpp @ 75 ohms
on a 4P connector
Output Two s-video(Y/C), (Y) 1 Vpp @ 75 ohms, (C) 0.03 Vpp @ 75 ohms on 4P connectors
Two composite video 1Vpp @ 75 ohms on BNC connectors
Video Bandwidth 160 MHz -3 dB(Y)
Video Signal-to-Noise Ratio Better than 80 dB (Y channel)
Differential Phase 0.03°
Differential Gain 0.05%
Coupling Not Specified by Manufacturer
Dimensions 4.7 x 2.95 x 0.98" (WxDxH)
12 x 7.5 x 2.5cm (WxDxH)
Weight 0.62 lbs
0.28 kg
Power Source 12 VDC @ 60 mA on an AC adapter

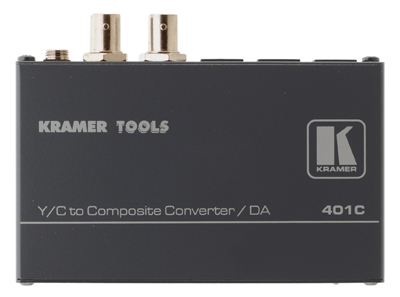

• Modelo: KRAMER 401C
• 5 Unidades en Stock
• Fabricado por: KRAMER
