Inputs 1 CV on an RCA connector, 1 YC on a 4-pin connector
Outputs 3 RCA connectors: Y/G, B-Y/B/CV and R-Y/R/C, for use as CV, Y/C, RsGsBs3, or component (Y/B-Y/R-Y); 1 Y/C on a 4-pin connector
Bandwidth 5MHz
Differential Gain 0.35%
Differential Phase 0.25Deg
K-Factor 0.4%
S/N Ratio 66.3dB
Crosstalk <-66dB
CONTROLS Input selector and output format selector push buttons
Power Source 12V DC, 210mA
Dimensions 21.5cm x 16.2cm x 4.4cm (8.46" x 6.38" x 1.73") W, D, H.
Weight 0.3kg (0.67lbs) approx.
Accessories Power supply
Options RK-1 19" rack adapter

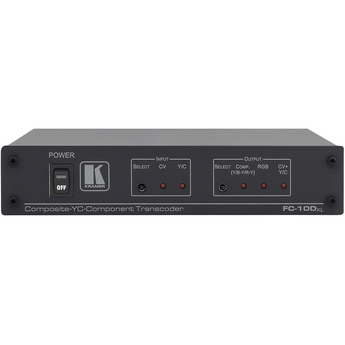

• Modelo: Kramer FC-10Dxl
• 5 Unidades en Stock
• Fabricado por: KRAMER
